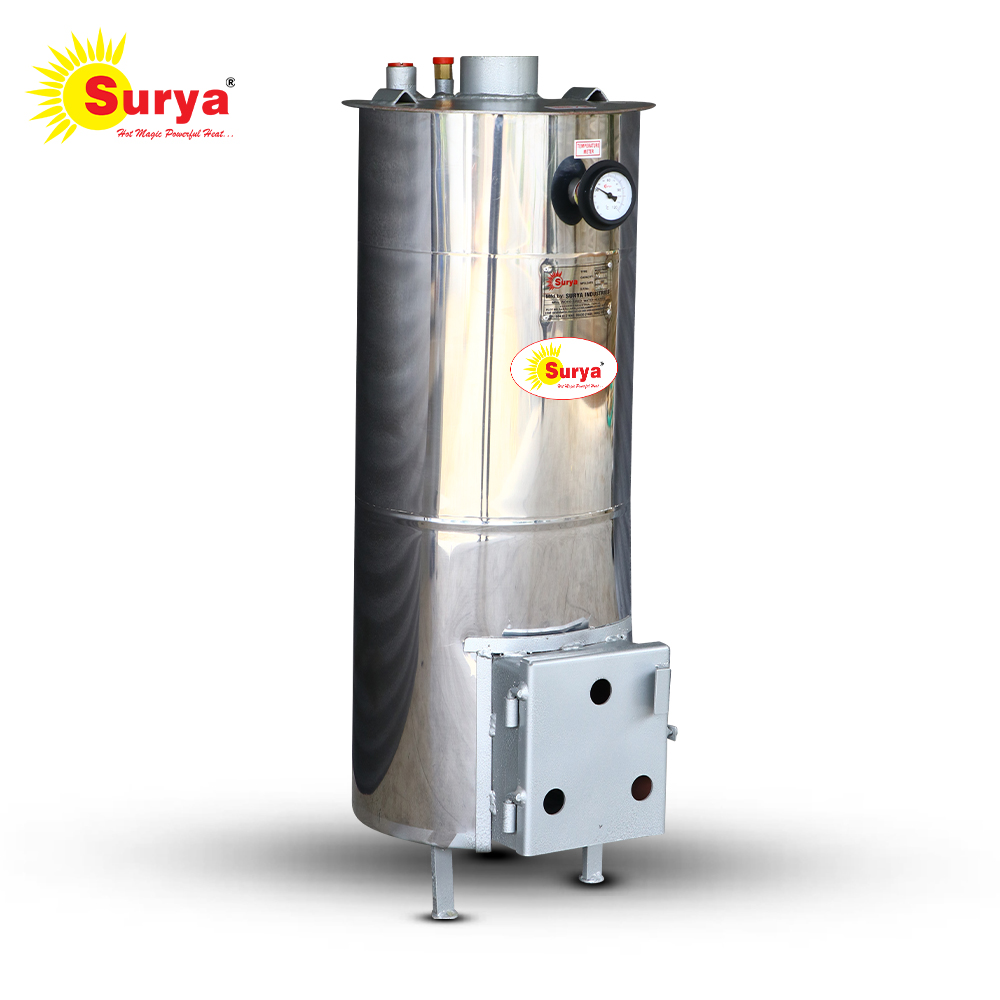

SURYA Domestic 40L Wood Fire Water Heater
Biomass boiler uses organic materials like wood pellets, agricultural waste or other biomass forms as fuel to generate heat. It converts the energy stored in biomass into heat energy for heating applications. Biomass fuel is loaded into the boiler's combustion chamber, where it undergoes controlled combustion. This releases heat, which is then transferred to water or a heat transfer fluid, producing hot water. Biomass boilers are environmentally friendly as the fuel comes from sustainable sources.
SUITABLE 📍
🔹DOMESTIC
🔹Schools, Hostels, Hospitals, Hotels, Dairy and Poultry farms.
Future 📍
🌀Hot water in just 10 Minutes
🌀Running cost based on occupancy
🌀 Compact Size
🌀 Longer heat retention
🌀 Suitable for hard water
🌀 Multi-floor hot water connection (Without EB)
🔸 Cost effective and reduced carbon foot print
🔸 Huge electricity and money saving
💠Solve waste disposal problem.
💠100 % safe (Non electrical).
Product detail📍
🔸Hot Roll Plate (Jinthal, JSW)
🔸50 mm Glass wool Insulation
🔸Covers Sheet SS Sheet
🔸Temperature Meter
🔸Safety Valve
🔸With Stand Heat for 8 hrs.
🔸Tested for 7.5kg air pressure
🔸5 years warranty
🔸Rust Proof coating
Accessories 📍
♦Exhaust Pipe Stand
♦Gray drawer
♦Fire bar (Casting)
♦Dore
♦Chimney cover
♦Temperature gauge
♦Spring type enclosed safety valves
♦User manual and Warranty card
📍Technical
🔹Model : 40L
🔹Colour : Sliver Ash
🔹Surface Finish : Mirror Polish
🔹Types : Vertical Tubular Heaters
🔹Automation Grade : Semi Automatic
🔹Usage/Application : Water Heating
🔹Operating Temp.. : 60C
🔹Working Pressure : 7.5Kgs/cm2
🔹Fuel Consumption : 1kg @max load
🔹Total weight : 45kg without water
🔹Top circle : 4mm
🔹Fire Pipe : D 3inch x T 4mm
🔹Outer tank : 3mm
🔹Inner tank : 4& 5mm
🔹Insulation Sheet : 0.4mm (430G)
🔹Diameter : 14in
🔹Height : 3feet
🔹Inlet Size : 3/4 inch Coupling
🔹Outlet Size : 3/4 inch ….
🔹Drainage : 1/2 inch
🔹Temperature : 1/2 inch
🔹 Safety valve : 1/4 inch
🔹 Firing Area : 280 volume (inch)
🔹Place Req.. : 1.5 x 1.5 Feet
🔹Exhaust Pipe : H 8Feet x Dia 3inch
🔹Hot Water 🕰 : 60C 15Minute
🔹 60C Hot water : 1L to Mix 2L could water
🔹Mounting : Foot Mount
🔴No. of Outlet : 1
🔴 No. of Person (one time heating) : 4 Persons
Safety📍
🔘The water heater can endure a pressure of up to 10 kilograms per square centimetre.
🔘Safety Valve
Cost Comparison:
Per person need 20L hot water
Different fuel Rate Comparison
Wood (home waste) : Zero Cost
Electrical : 12Rs
Solar (Electric beakup) : 5Rs
Charcoal : 8Rs
Kerosene : 9Rs
LPG : 12Rs
Natural Gas : 6Rs
◾Maintenance*:
☑Dirty, Rusty or Smelly Water
If your water is smelling off, it is almost always an indicator of some kind of bacteria growth. You will need to flush your tank.
☑More Time & Fuel
It is almost always an indicator of some kind of Dust Growth. Your will need to clean Boiler Exhaust pipe.
