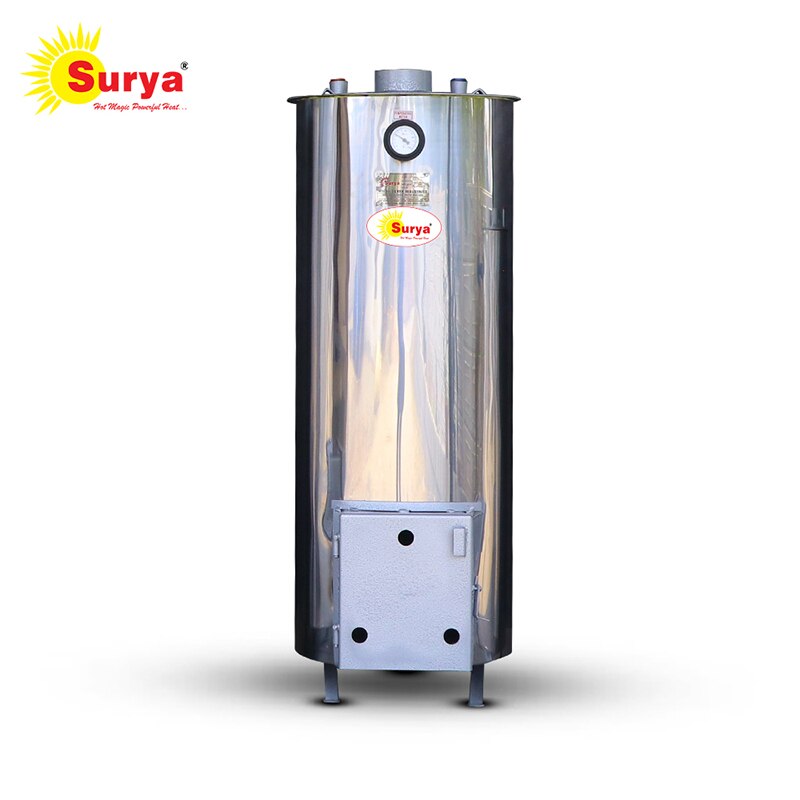

Wood Fire Water Heater 110 Liter

Wood-fired water heaters generally have lower operating costs compared to systems that rely on electricity or fossil fuels. While there may be initial investments in equipment and installation, ongoing fuel costs can be relatively low, especially if residents have access to free or low-cost wood.

Working Principle:

the wood-fired water heater's working principle relies on the combustion of wood to generate heat, which is transferred to the water through a heat exchanger. The heated water is then circulated or stored in the tank for later use, providing a source of hot water without relying on electricity or other fuel sources.

😎😎ALWAYS USE SURYA NATURAL WOOD FIRE WATER HEATER💪

No body pain

NO hair fall

Zero Current charge 🧾 SAVE YOUR MONEY💵

SUITABLE 📍

🔹DOMESTIC

Future 📍

🌀Hot water in just 10 minute

🌀Running cost based on occupancy

🌀 Compact Size

🌀 Long heat retention

🌀 Suitable for hard water

🌀 Multi-floor hot water connection (Without EB)

🌀 Own Modern design

🔸 Own with pride and easy upkeep

🔸 Dependable and longer life span

🔸 Cost effective and reduced carbon foot print

🔸 Huge electricity and money saving

💠 Bio-energy is heating fuel Energy from waste.

💠Solve waste disposal problem.

💠100 % safe (Non electrical).

Product detail📍

🔸50mm Glass wool Insulation

🔸Covers Sheet SS Sheet

🔸Temperature Meter

🔸Safety Valve

🔸With Stand Heat In 8hrs

🔸Tested for 7.5kg air pressure

🔸5 year warranty

🔸Rust Proof coating

Accessories 📍

♦️Exhaust Pipe Stand

♦️Gray drawer

♦️Fire bar

♦️Dore

♦️Chimney cover

♦️Temperature gauge

♦️Spring type enclosed safety valves

♦️User manual and Warranty card

📍Technical

🔹Model : 80L

🔹Colour : Sliver Ash

🔹Surface Finish : Mirror Polish 🔹Types : Vertical Tubular Heaters

🔹Automation Grade : Semi Automatic

🔹Usage/Application : Water Heating

🔹Operating Temp.. : 100C

🔹Working Pressure : 7.5kgs/cm2

🔹 Hot Water Output : 3L hr

🔹Hot Water 🕰️ : 60C 15Minute

🔹 60C Hot water : 1L to Mix 2L could water

🔹Fuel Consumption : 2.5kg @max load

🔹Total weight : 68kg without water

🔹Top circle : 4mm

🔹Fire Pipe : D 4.6inch x T 4mm

🔹Outer tank : 3mm

🔹Inner tank : 4&5mm

🔹Installation Sheet : 0.4mm (430G)

🔹Diameter : 18inch

🔹Height : 3feet

🔹Inlet Size : 3/4 inch Coupling

🔹Outlet Size : 3/4 inch …

🔹Drainage : 1/2 inch

🔹Temperature : 1/2 inch

🔹 Safety valve : 1/4 inch

🔹 Fire Bar : 5Kg

🔹Firing Area : 400 volume (inch)

🔹Exhaust Pipe : H 10Feet x Dia 3inch

🔹Place Requirement : 1.5 x 1.5 feet

🔴 No Of Output : 2-3Rooms

🔴 No of person : 1-8 (Once Heating)

Cost Comparison Of Different :

Per person need 20L hot water fuel Rate

1 Wood (home waste) : Zero Cost

2 Electrical : 12Rs

3 Solar (Electric beakup) : 5Rs

4 Charcoal : 8Rs

5 Kerosene : 9Rs

6 LPG : 12Rs

7 Natural Gas : 6Rs

◾️Maintenance*:

☑️Dirty, Rusty or Smelly Water

If your water is smelling off, it is almost always an indicator of some kind of bacteria growth. You will need to flush your tank as well as If this is the case.

☑️More Time & Fuel

it is almost always an indicator of some kind of Dust Growth. Your will need to clean Boiler Exhaust pipe as well as.

❤️Boiler keep Dry

❤️don’t placed any things(like shampoo , soup, etc) top side of boiler

❤️Plumbing connection make Without leaking

❤️ don’t use plastic

❤️ Do not fit non return valve (NRV)

❤️ Clean the waste Ash

We are from Surya Industries, located in Codissia Industrial Park B, Coimbatore. We have been manufacturing wood fire water heaters under the brand name of Surya Water Heater since 2000. Our product range includes commercial and domestic water heaters.
